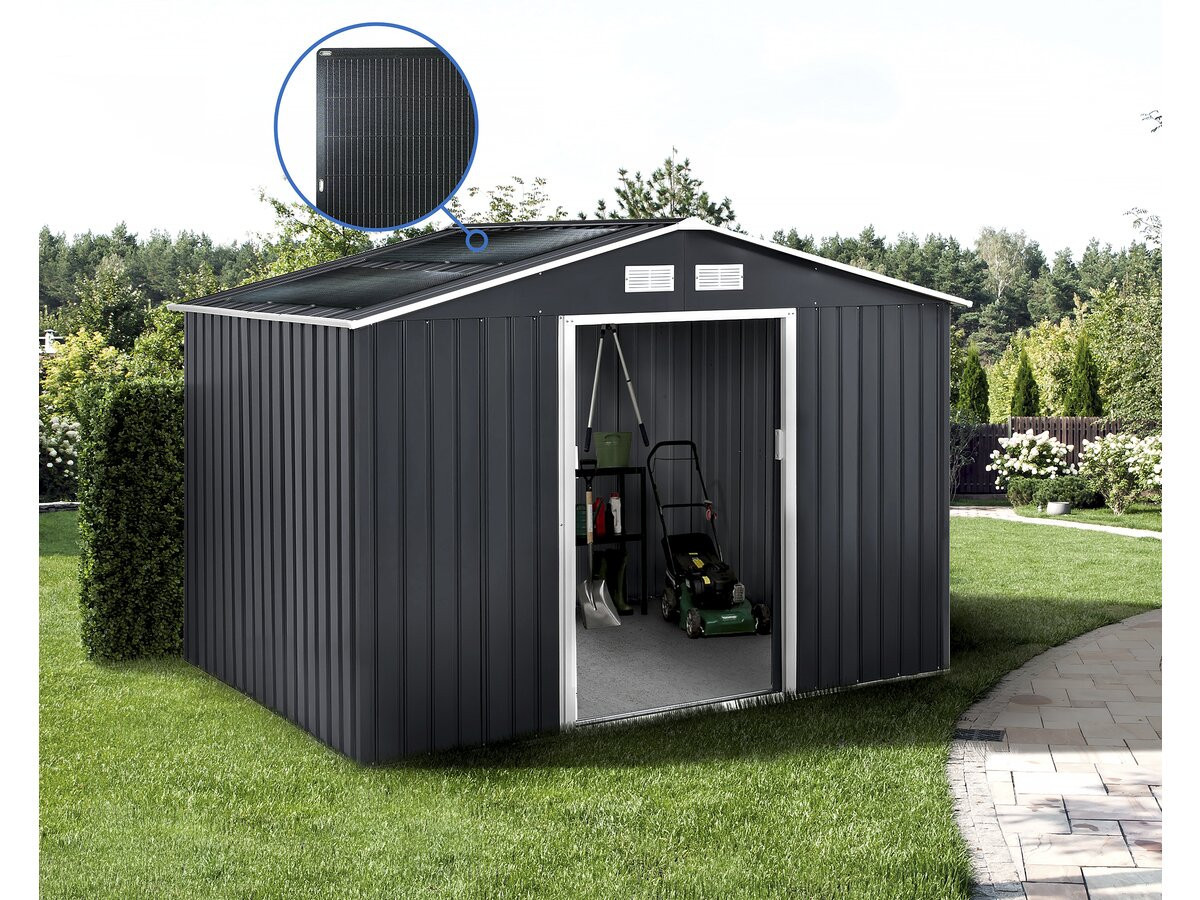

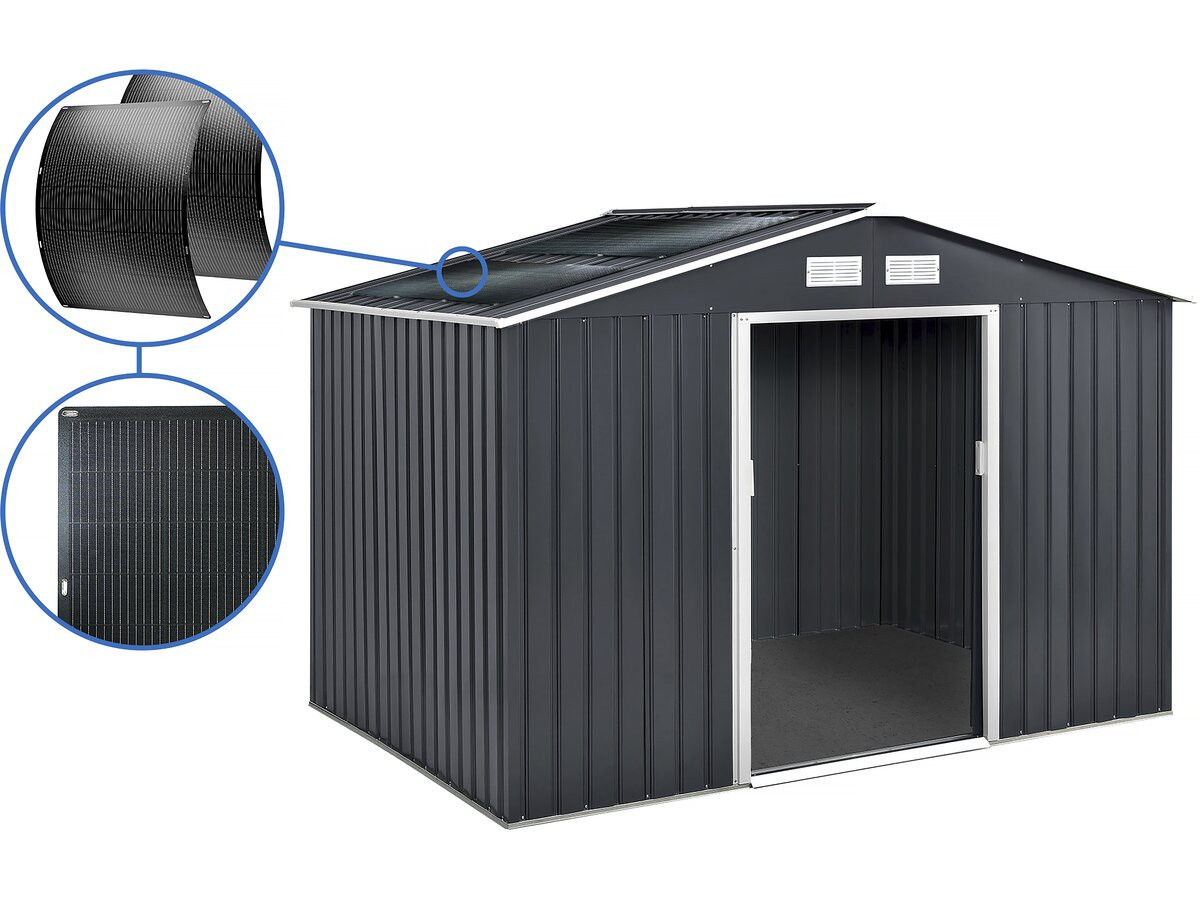

Description :- Reinforced galvanized steel structure - Practical, the double sliding door - UV and corrosion resistance - Overall dimensions: 2.55 x 2.77 m - Structure thickness: 0.5-0.8 mm - Available in several dimensions - Foundation/base not included
-
-
-
Colour :Grey
-
Wall :Grau
-
-
-
Overall surface :7,06 m²
-
Measurements :245 x 267 cm
-
Exterior :2.45 x 2.67 m
-
Inside :2.41 x 2.63 m
-
Ridge height :2.02 m
-
Wall height :1,65 m
-
Wall thickness :0.25 mm
-
-
-

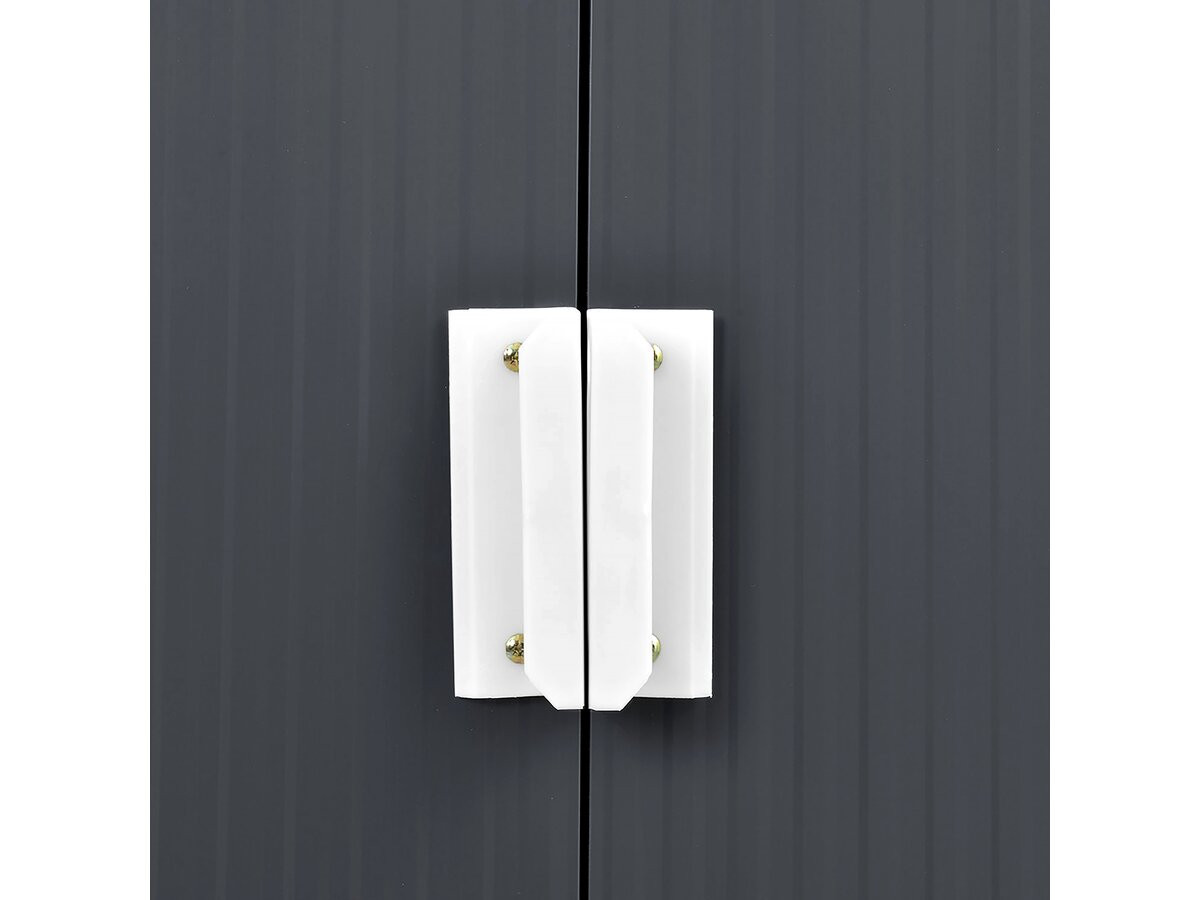

Door type :Doppelschiebetür mit Handgriff
-
Door dimensions :0,96 x 1,52 m
-
-
-
Maximum weight supported :60kgs/m2
-
-
-

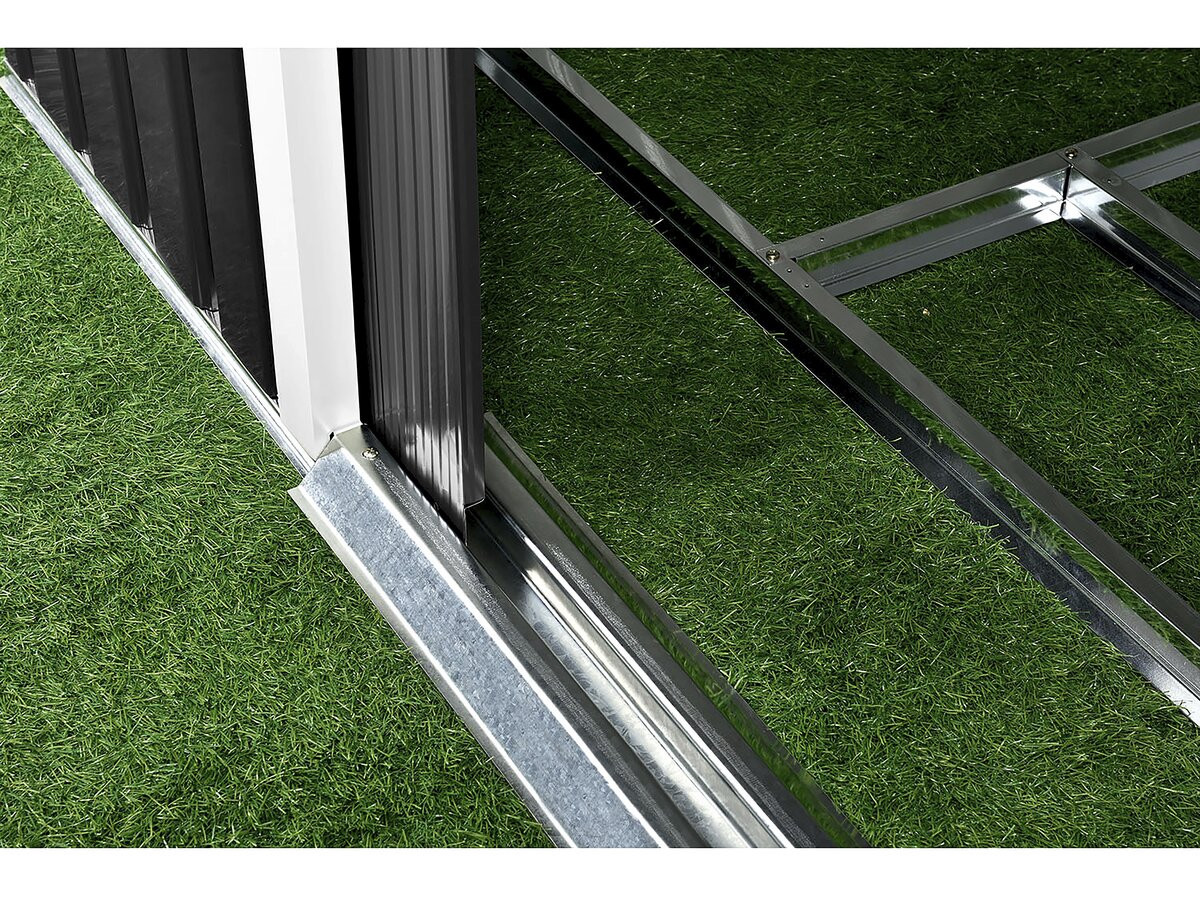

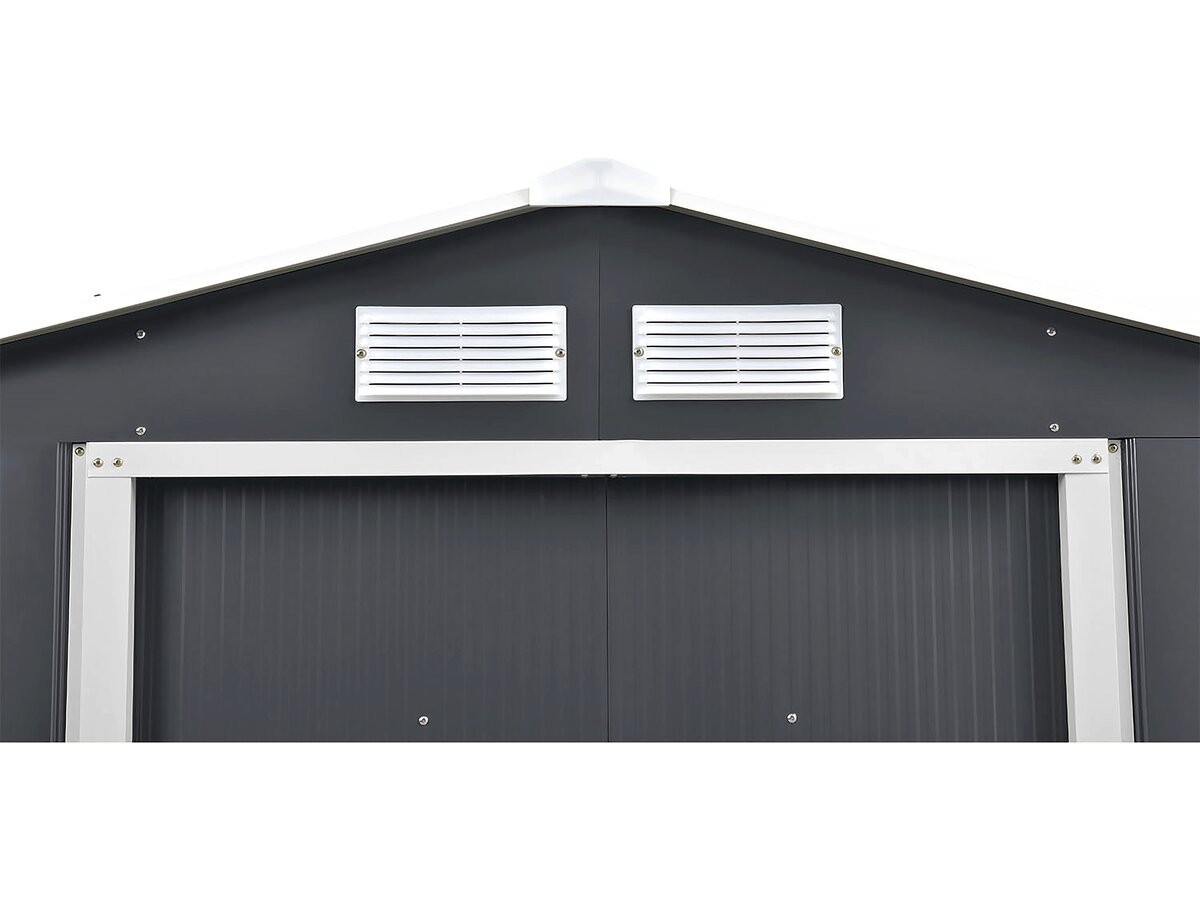

the + product :- Sliding door - 4 ventilation grids
-
-
-
Panel type :Flexible
-

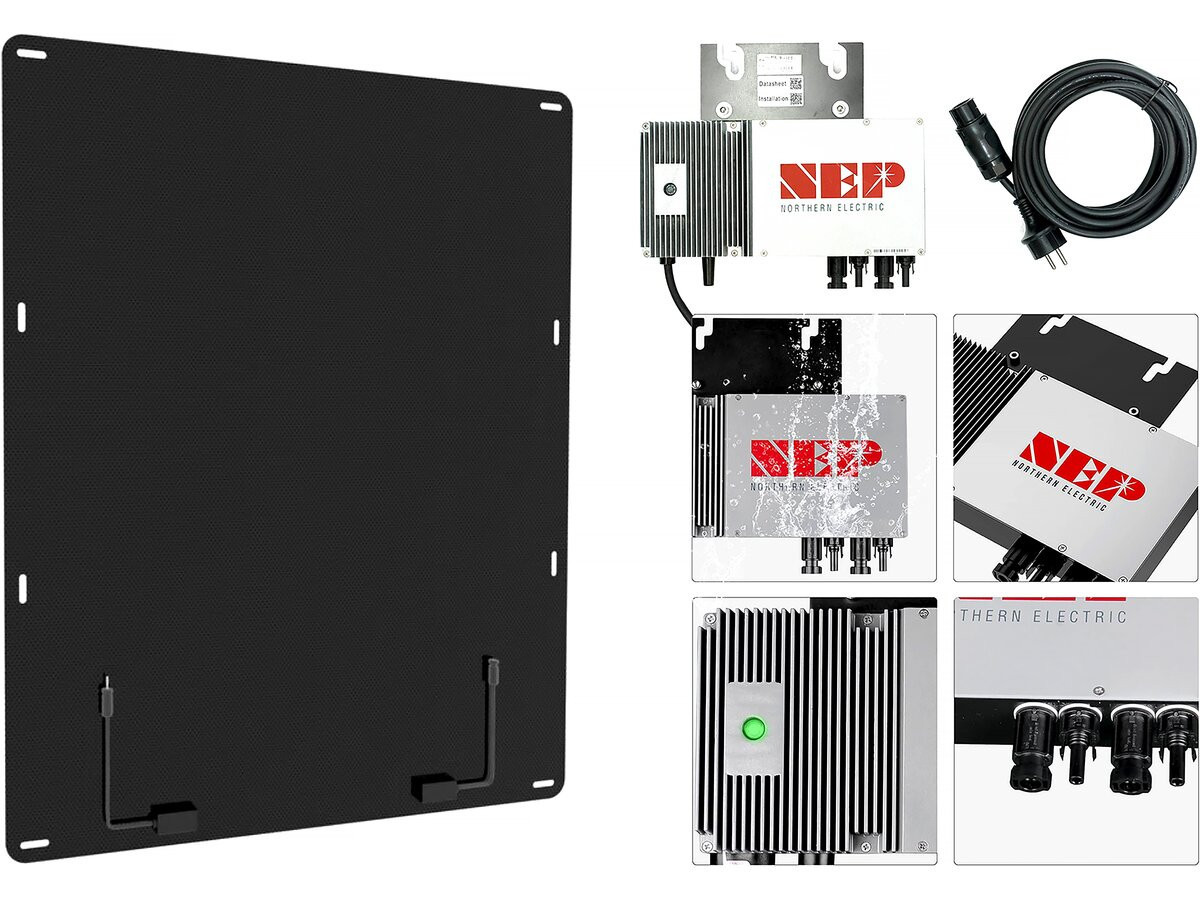

Pmax power :200W
-
Short-circuit current* Isc [A] :26.57V
-
Open circuit voltage* Uoc [V] :26.57V
-
Current at MPP* Impp [A] :8,85A
-
Voltage at MPP* Umpp [V] :22,62V
-
Yield [A] :19.8A
-
Dimensions of solar panels :113 x 90 x 0,3 cm
-
Solar panel cable :90cm + mc4
-
Pressure load/tensile load [Pa] :2400Pa/5400Pa
-
Output power :600 W
-
Nominal output voltage :230V - 50Hz
-
Protection level :IP67
-
Maximum photovoltaic voltage :60V
-
Maximum input current :2x 12.5A
-
MPPT voltage range :2x 12.5A
-
Maximum efficiency :97.10%
-
MPPT efficiency :99.5%
-
Operating temperature range :-40°C +85 ºC
-
Inverter cables :5 m mit Steckdose
-
Solar Panel Warranty :12 Jahre
-
-
-
Door opening :Schiebetür
-
Color (filter) :Gray
-
Packaging :2 packages: - 1.78 x 0.74 x 0.15 m, 79.2 kg - 1.15 x 0.92 x 0.11 m, 11.3 kg
-
-
Guarantee2 years
