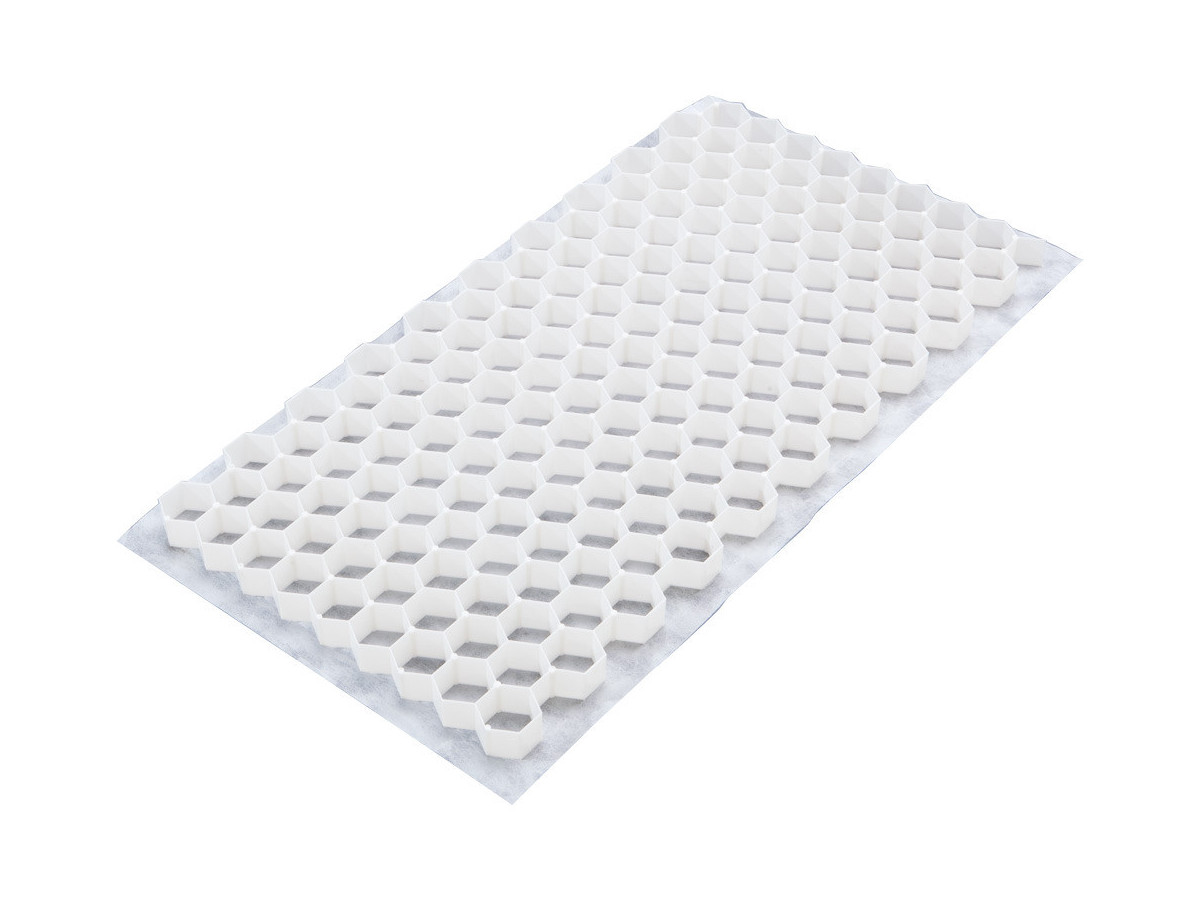

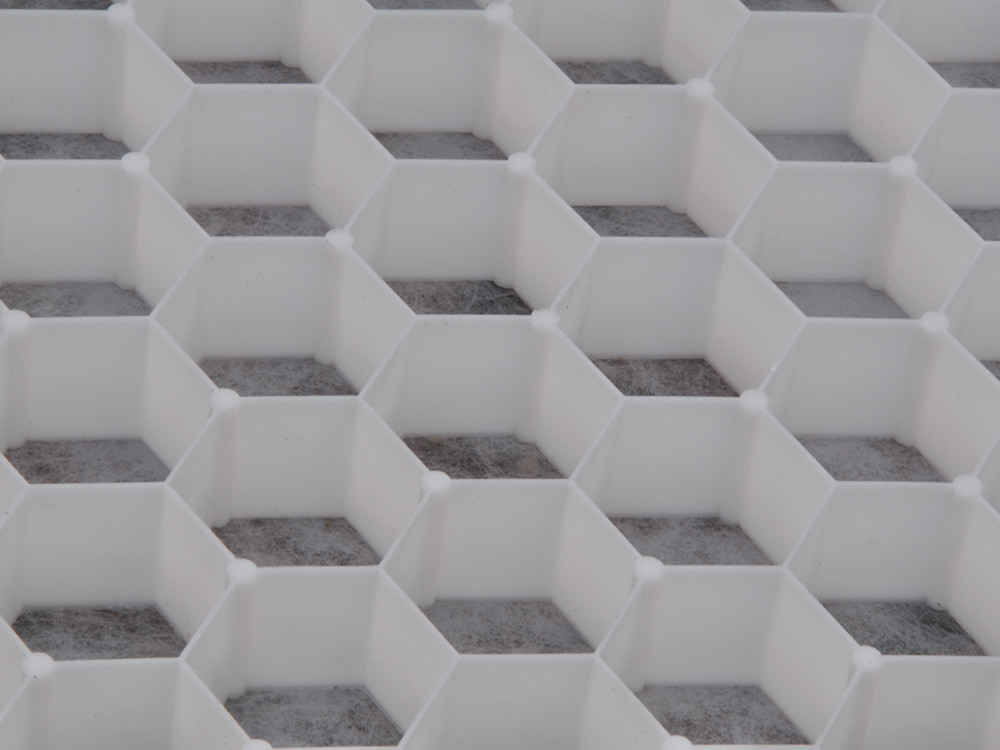

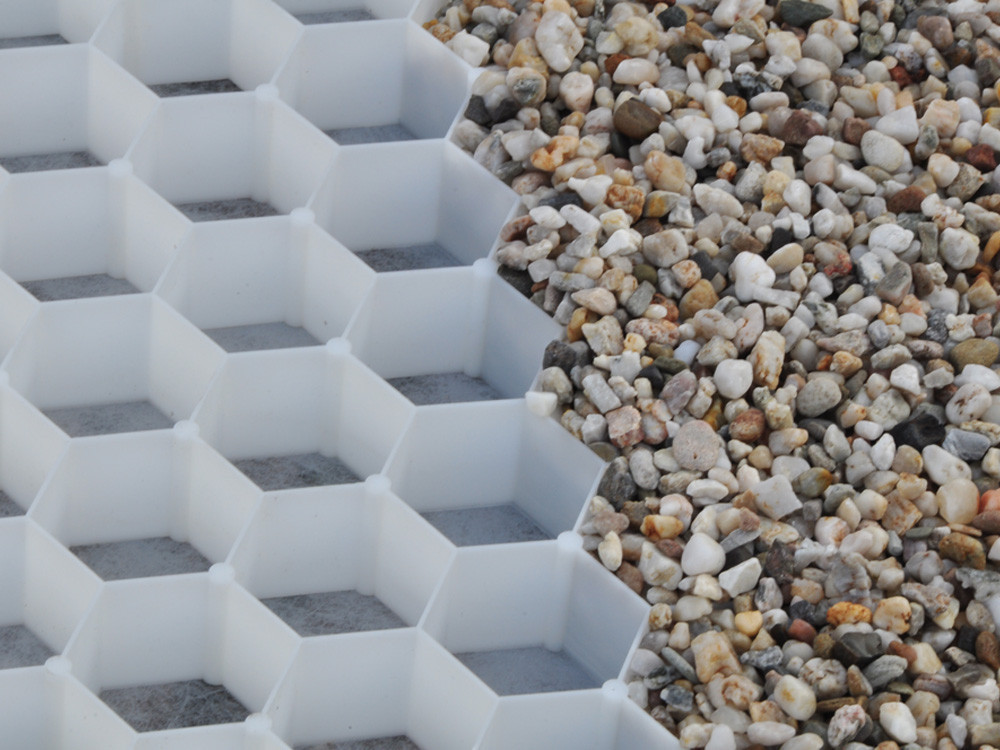

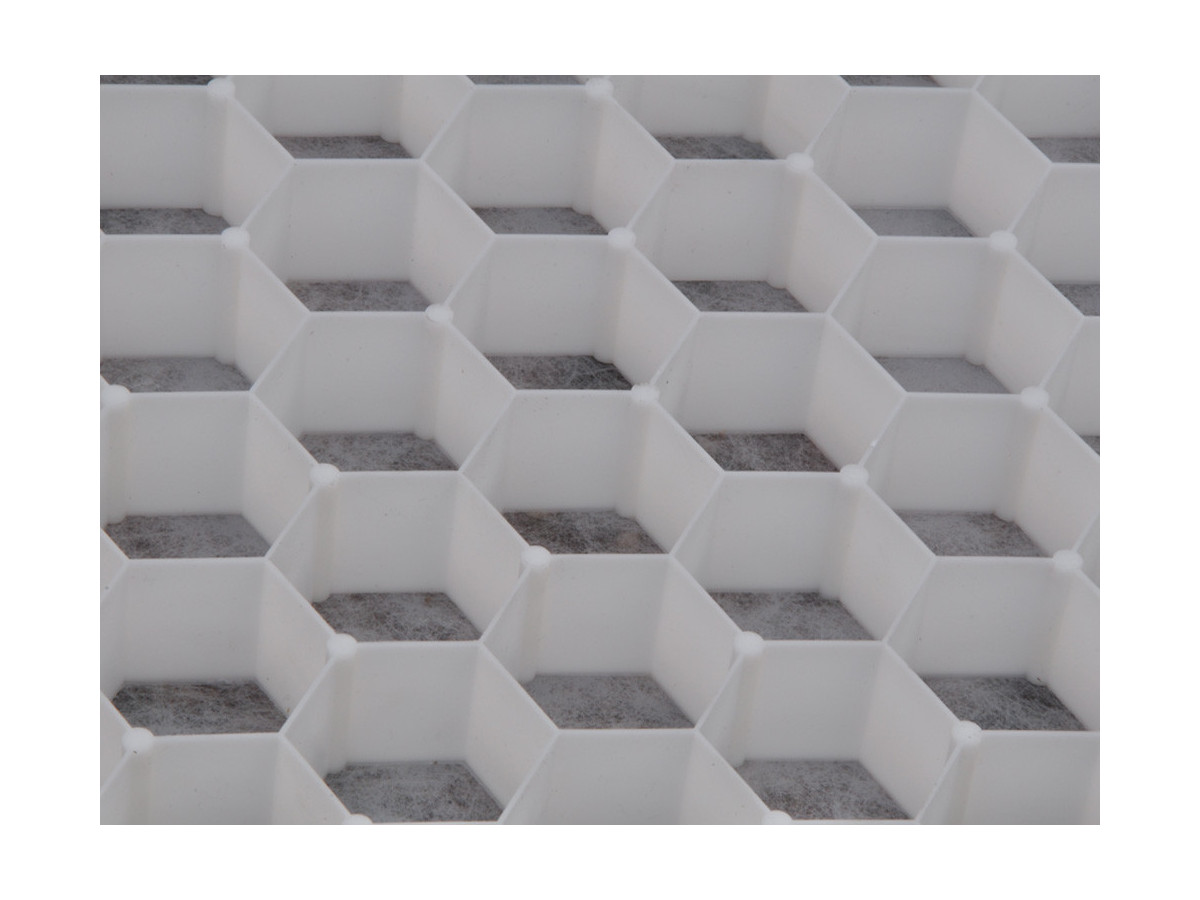

BERA® Gravel Fix™ with its honeycomb structure is designed to provide a stable, solid base for access paths, parking lots, driveways or similar, using gravel.
Gravel Fix is a stabilization system for gravel and will provide a stable, porous and draining surface for outdoor landscaping.

Applications:

- Gardens

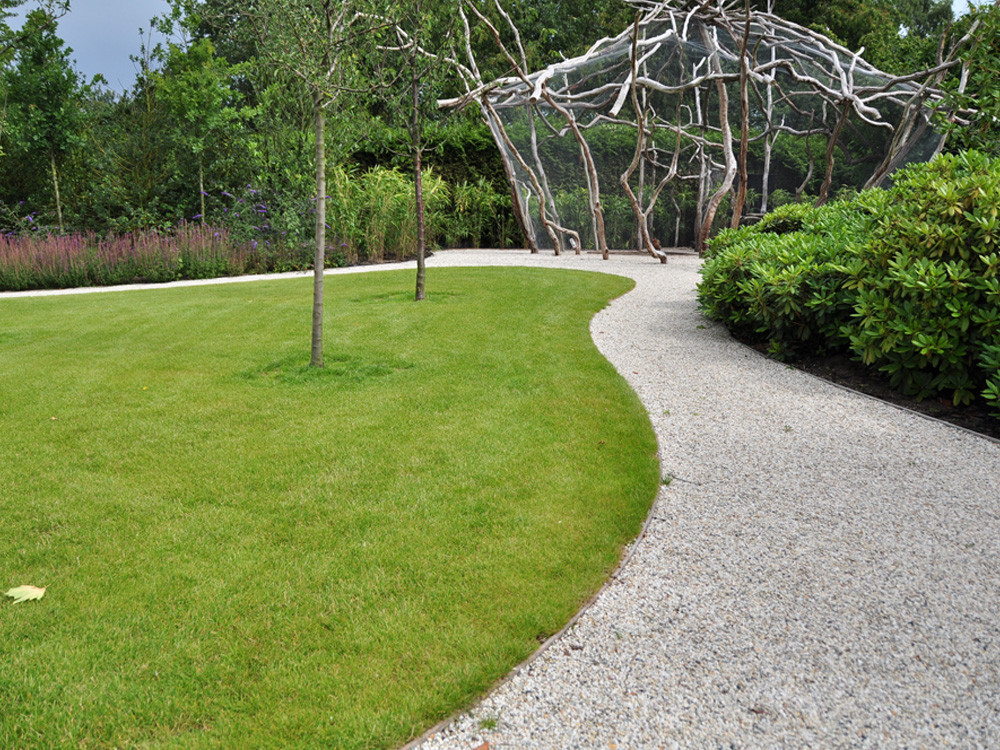

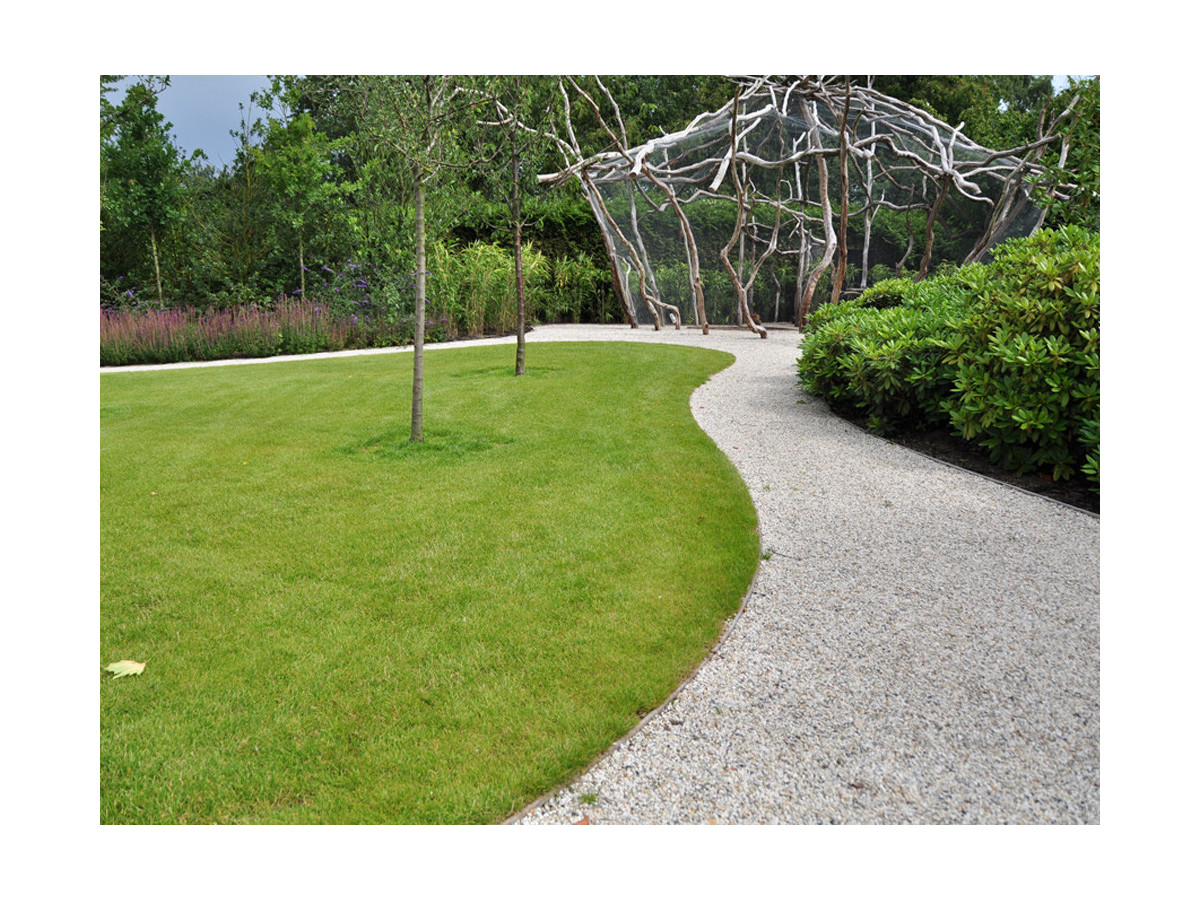

- Paths and other pedestrian areas

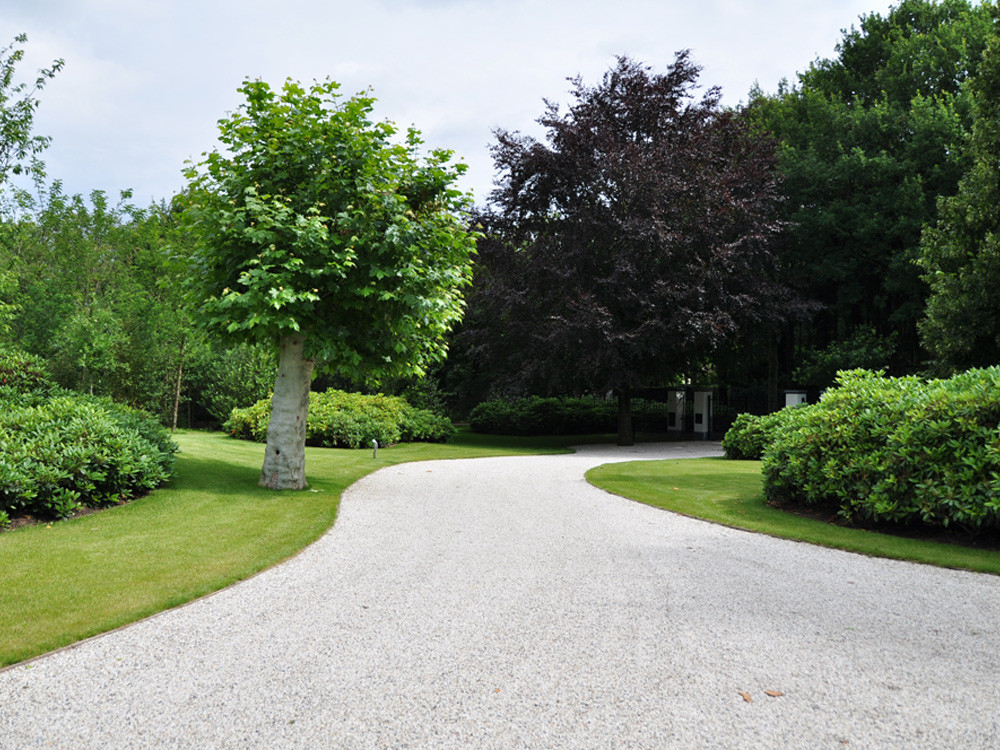

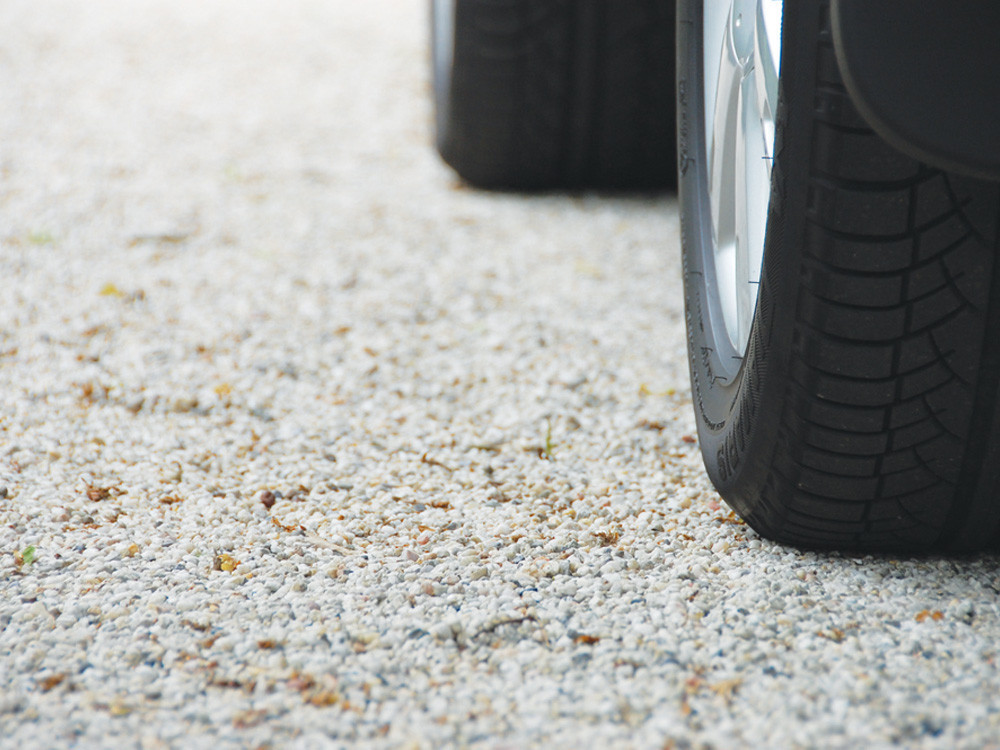

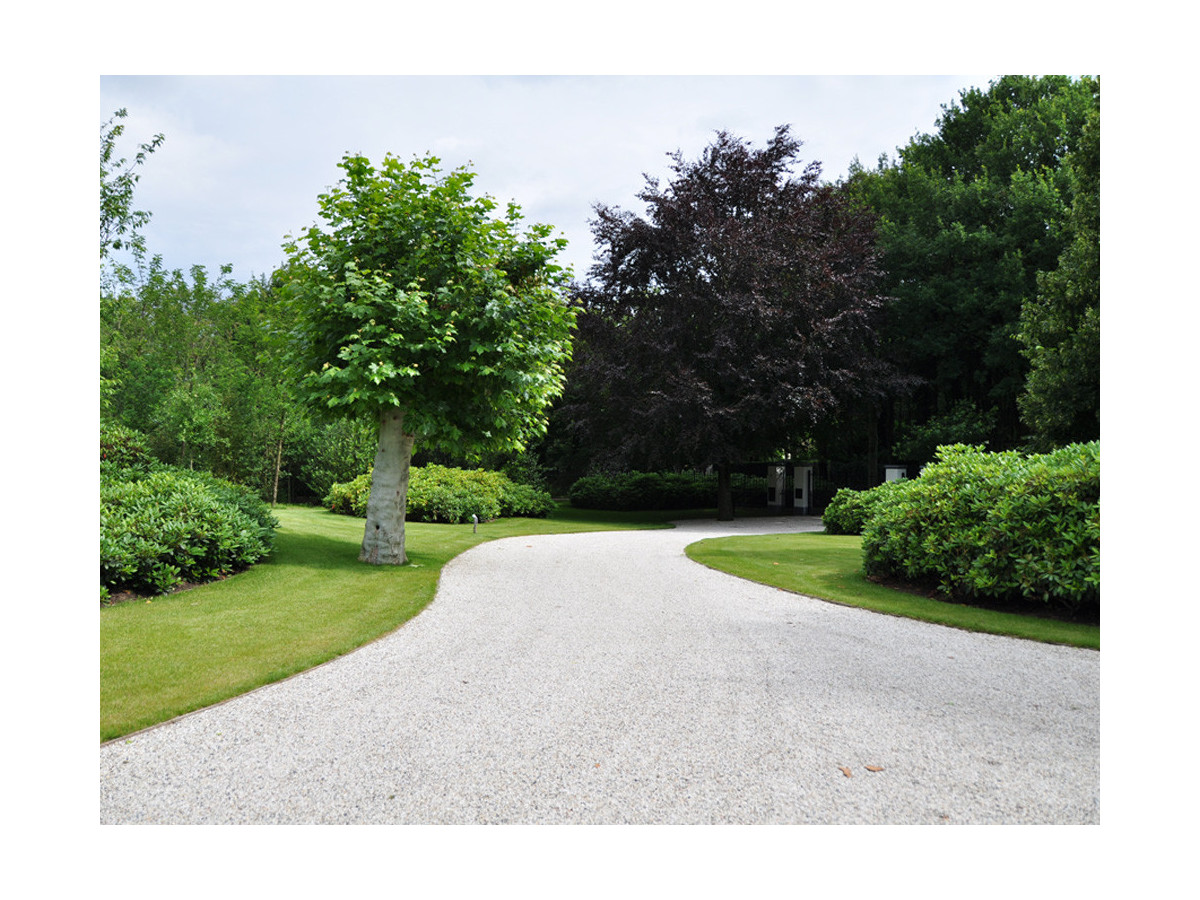

- Parking lots and gravel driveways

- Garage access roads

Features and benefits of BERA GRAVEL FIX™ Smart:

- Compact, practical, easy-to-transport 40 x 80 cm

- Strong, consistent structure thanks to high-precision injection molding process

- Made from 100% recycled polypropylene, fully recyclable

- Sustainable manufacturing thanks to the use of solar energy for the injection process and alternatively for heating, to limit CO2 emissions

- Easy to cut around obstacles such as trees, shrubs or fences

- High porosity for rapid infiltration of water from the surface, even in compacted gravel

- Geotextile provides greater stability and prevents weed growth

- Eliminates the need for weedkillers or herbicides

- No ruts or puddles

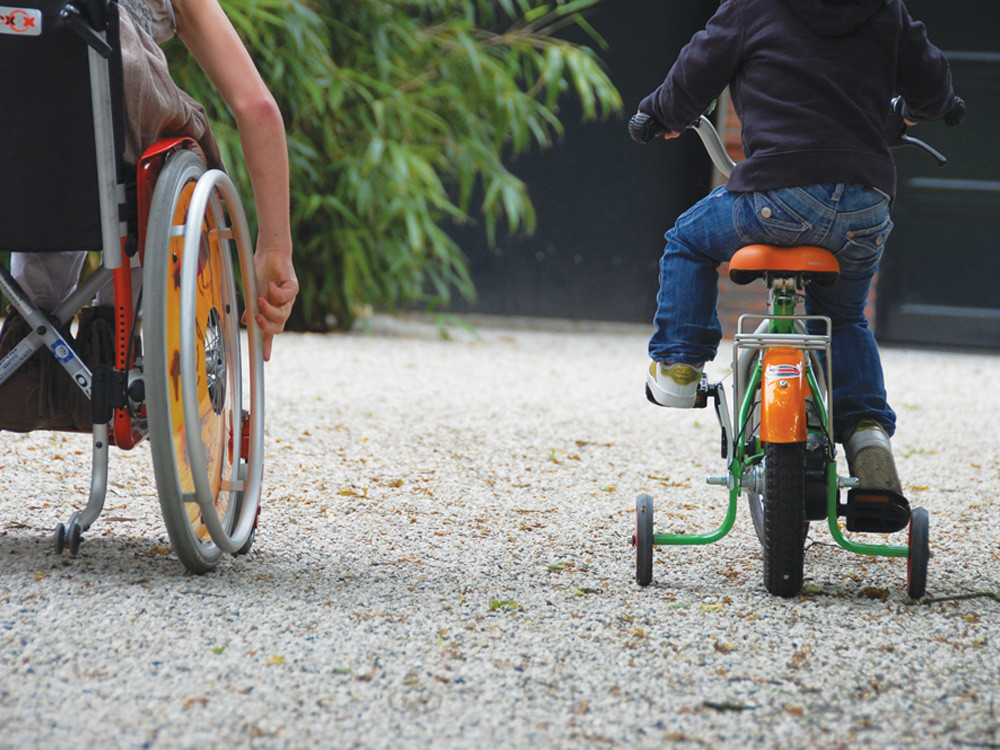

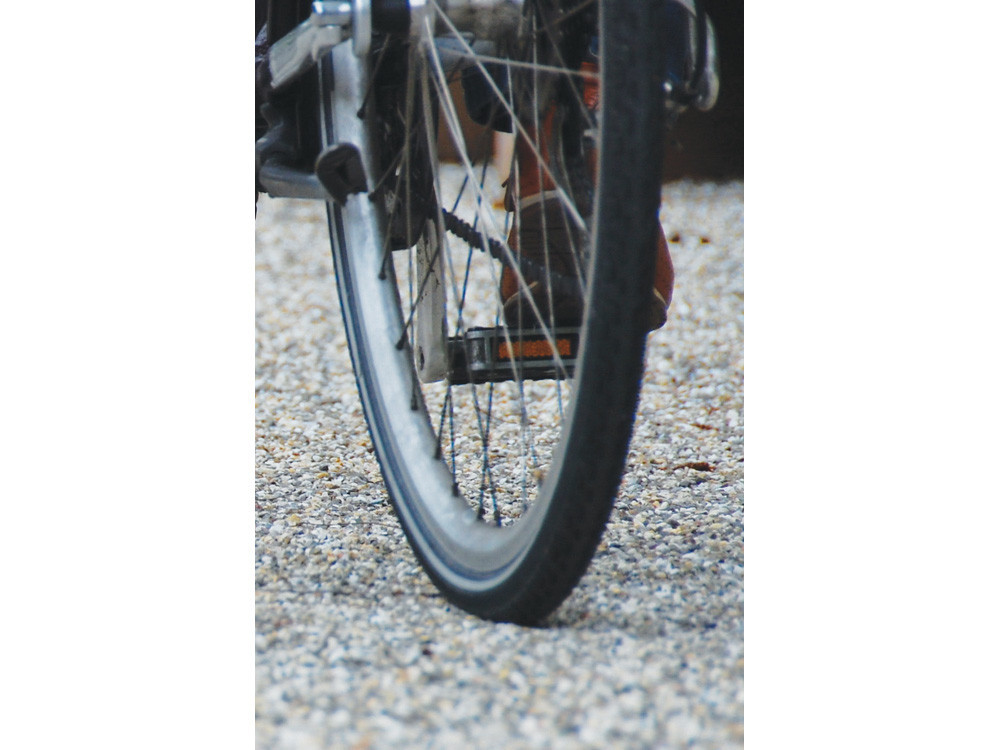

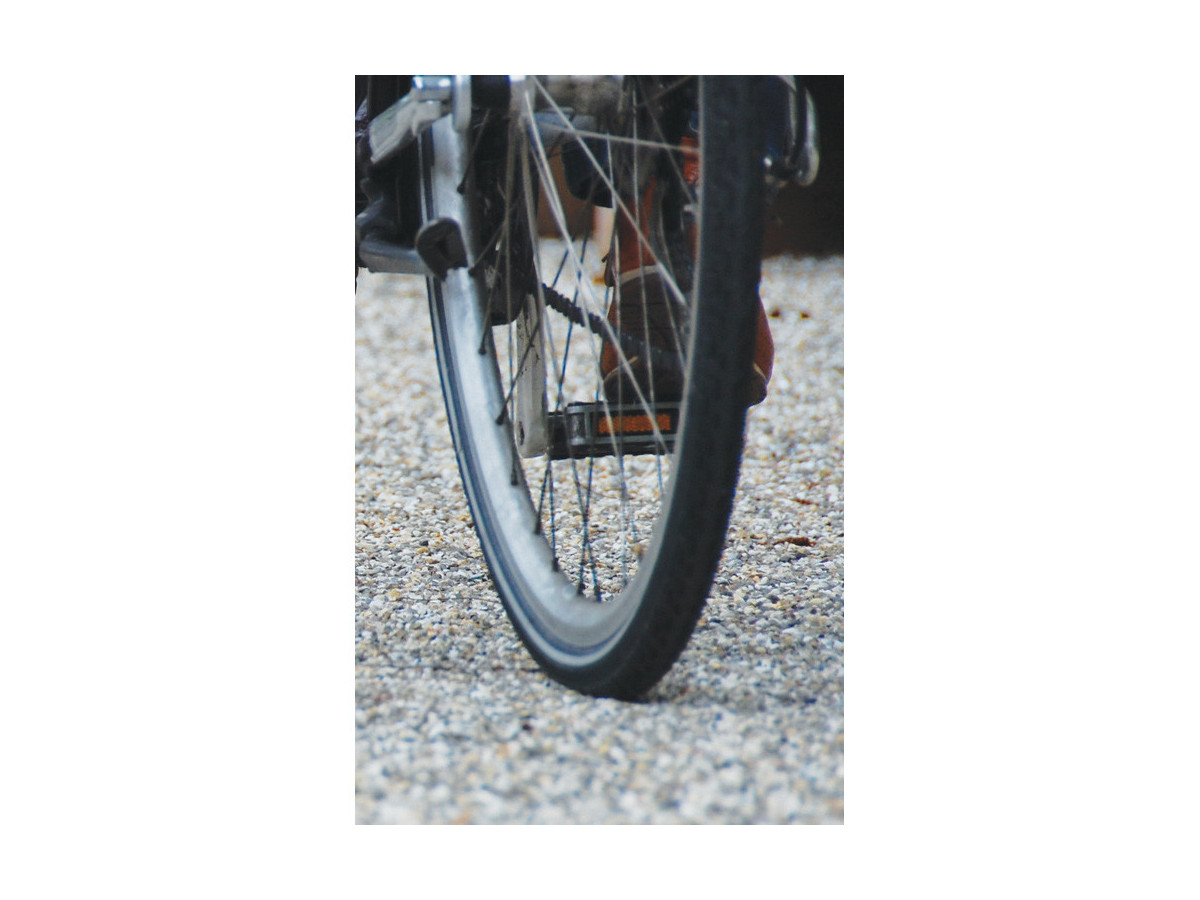

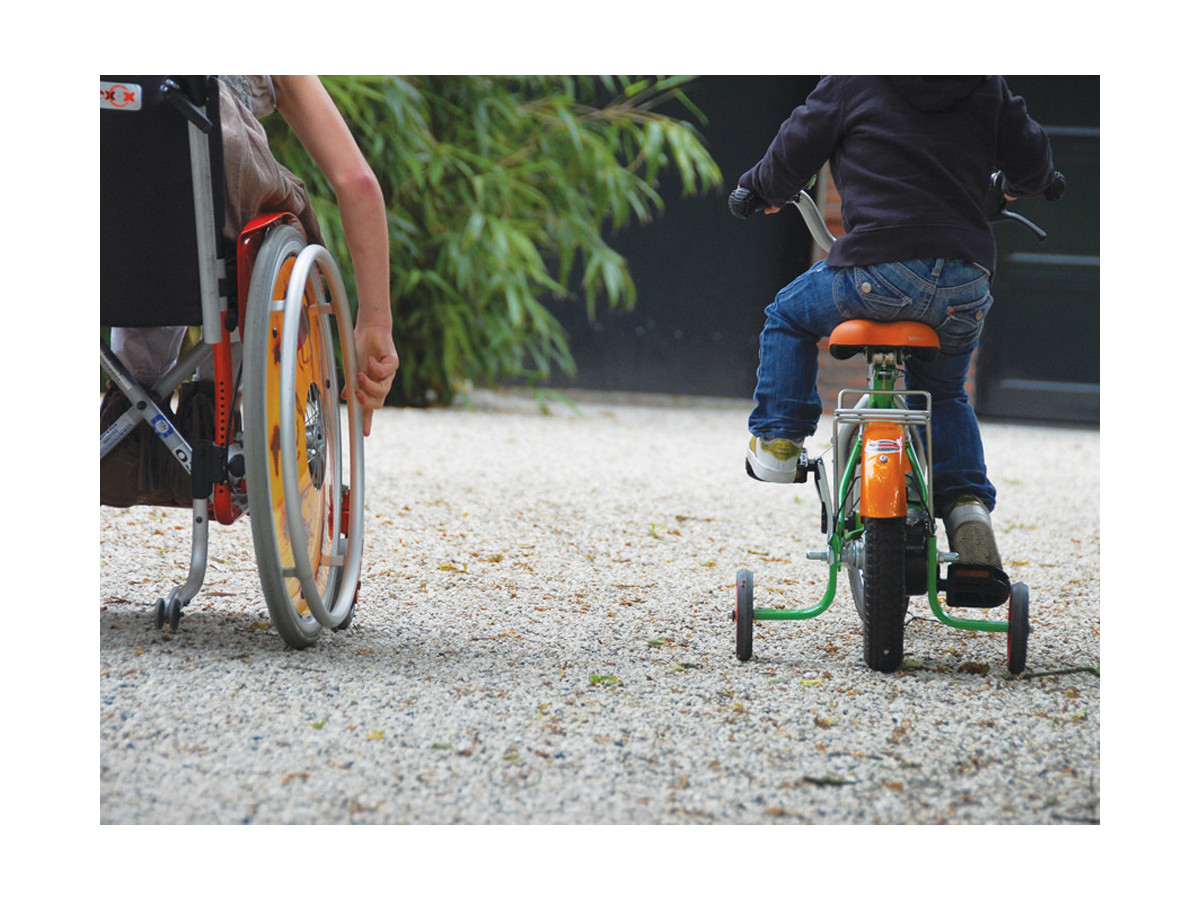

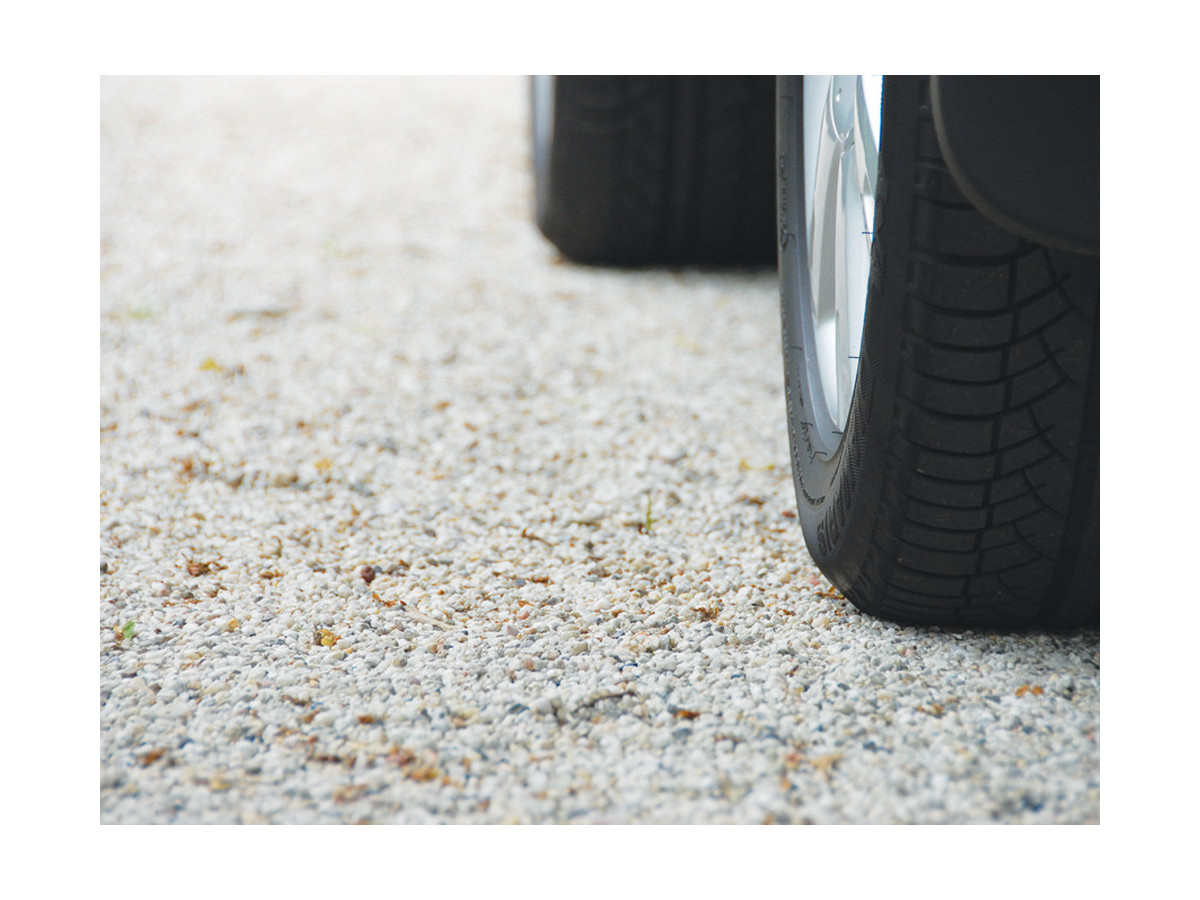

- Easy access for pedestrians, bicycles, motorcycles, wheelchairs and vehicles

- Stable support for garden furniture legs and ladders

ASSEMBLY INSTRUCTIONS :

1. FOUNDATION

The profile of the foundation is determined by the conditions and the anticipated load. For footpaths: a uniform 10 cmlayer of white sand. For light vehicles: a compact 15-20cm layer of crushed stone plus a 4-6cm layer of white sand.

2. SHAPING

Use aluminum, steel, flexible wood or PVC kerbstones to create the desired shape.

Use a laser level to align the heights with the surroundings.

3. COMPACT

A stable, well-compacted base, as used in all other paving methods, is essential for BERA GRAVEL

FIX™ Smart. Failure to comply with this step may maintain a decrease in the expected effectiveness of BERA GRAVEL FIX™ Smart.

4. LEVELLING

After compaction, level the sand layer, removing any excess. Remove all pebble debris from this sand layer.

5. INSTALLATION

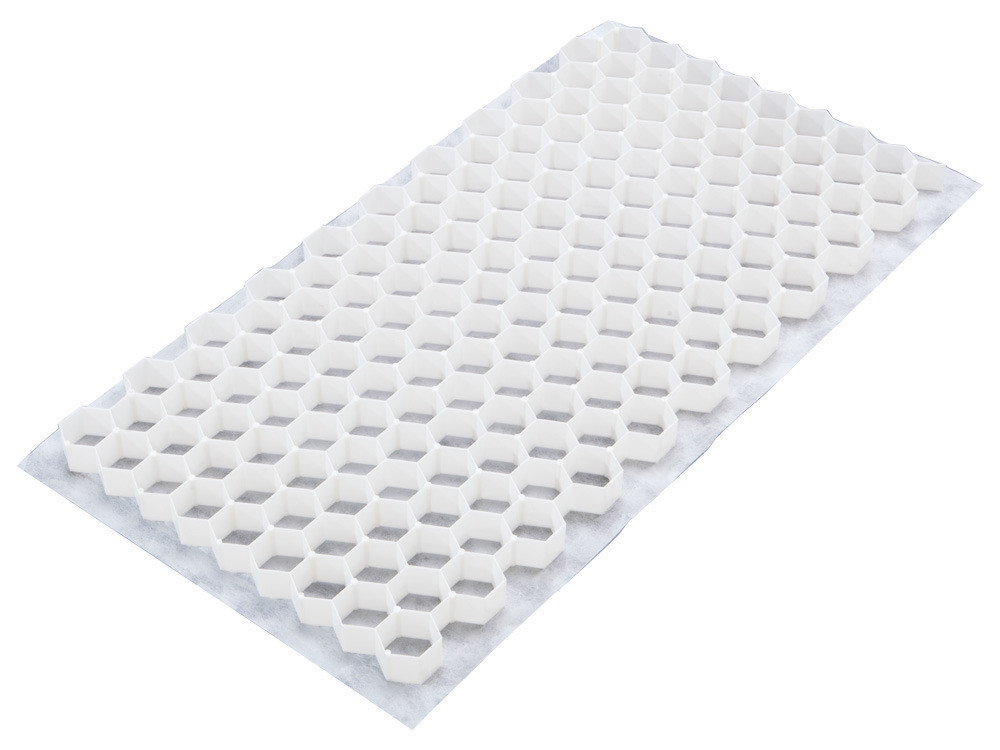

Each panel has 2 sides with a geotextile overhang. Lay the panels on the surface of the geotextile protruding from the adjacent panels for maximum stabilization, optimized control of root growth and excellent support.

Cut panels to fit edges or obstacles using power or hand tools, ensuring that they are firmly seated against the edges.

(Note: Please follow manufacturers' tool safety instructions).

5. FILLING

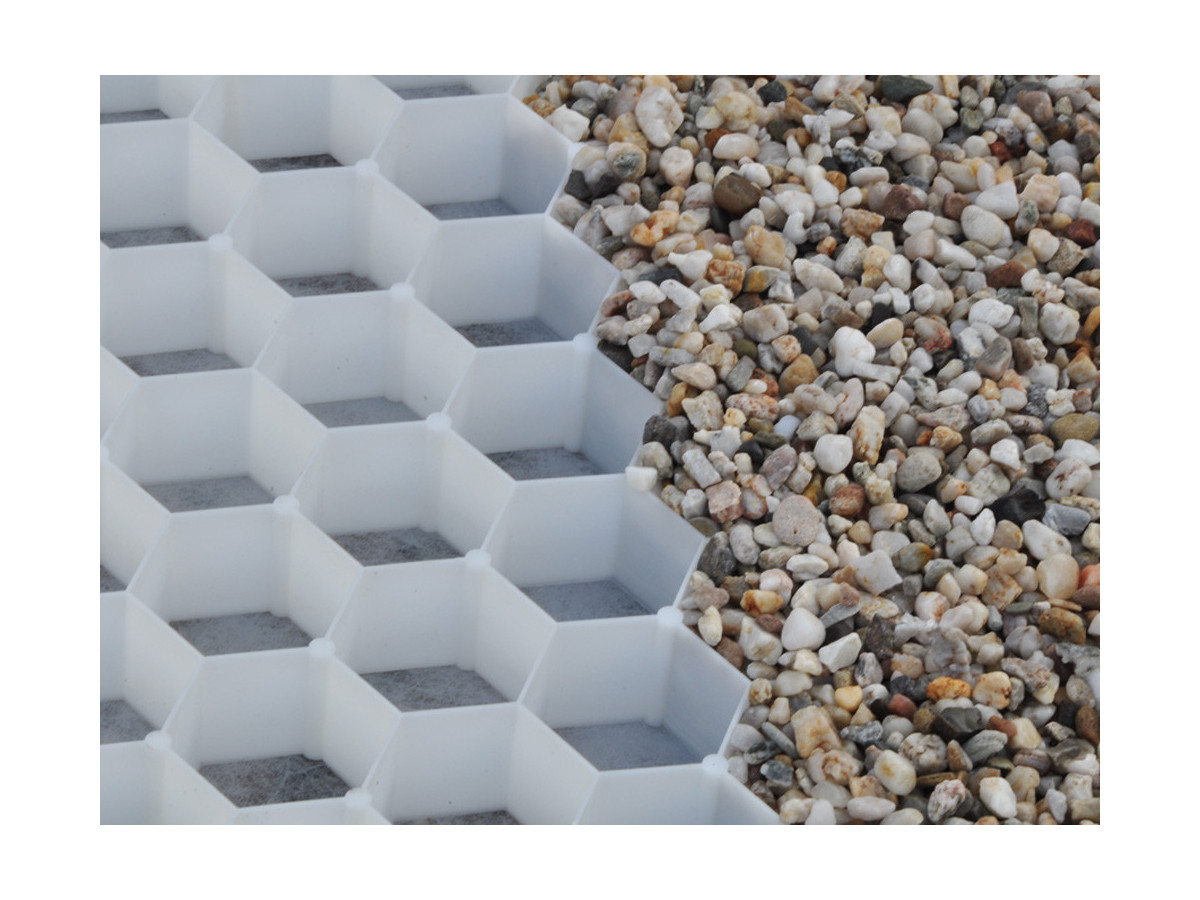

Fill panels with gravel (refer to our technical documentation). Gravel size between 3 and 15 mm. Cover with a 15-20 mm<
